Compatibility & fitting
Check your device and handlebar setup.
Compatible devices
Wahoo Elemnt
- Original
-
- Elemnt
- Wahoo Elemnt Mini
- Bolt series
-
- Wahoo Elemnt Bolt
- Wahoo Elemnt Bolt V2
- Wahoo Elemnt Bolt V3
- Roam series
-
- Wahoo Elemnt Roam
- Wahoo Elemnt Roam V2
- Wahoo Elemnt Roam V3
Wahoo ELEMNT ACE — fits, but not recommended
Its size and weight can increase loads on the plastic quarter-turn interface.
Always use Wahoo’s supplied safety tether.
The ELEMNT ACE physically fits the Wahoo version of this mount. However, its greater weight increases the forces transmitted through the plastic quarter-turn insert over bumps and rough surfaces. Its size and weight distribution can also increase leverage at this connection, making the insert more susceptible to fatigue or breakage. For this reason, we do not recommend this combination.
The 350 g limit covers the combined weight of the GPS and permitted underside accessories. It is not a 350 g rating for the plastic insert alone, so this recommendation applies even below the overall weight limit.
If you choose to use an ACE, always secure it to your handlebar or stem using the safety tether supplied by Wahoo.
Mounting compatibility
Designed for handlebars with two inline threaded mounting holes on a flat underside.
Check your bolt spacing and device clearance against the dimensions below.
Handlebar examples & exclusions
These examples use a two-bolt mounting layout. Check your exact handlebar model, bolt spacing and clearance against the dimensions below.
- PRO Stealth Evo
- Canyon H31 and compatible CP‑series*
- Ritchey Solostreem
- Cinelli Ram 2
- FSA Plasma
- Most Talon
- Argon 18 AHB5000
- Syncros RR1.0 Carbon Aero (flat, inline versions only)
Exclusions
- *Canyon CP0039 and CP0048 'Gear Groove' handlebars
- Syncros RR1.0 bars that are not the flat, inline version

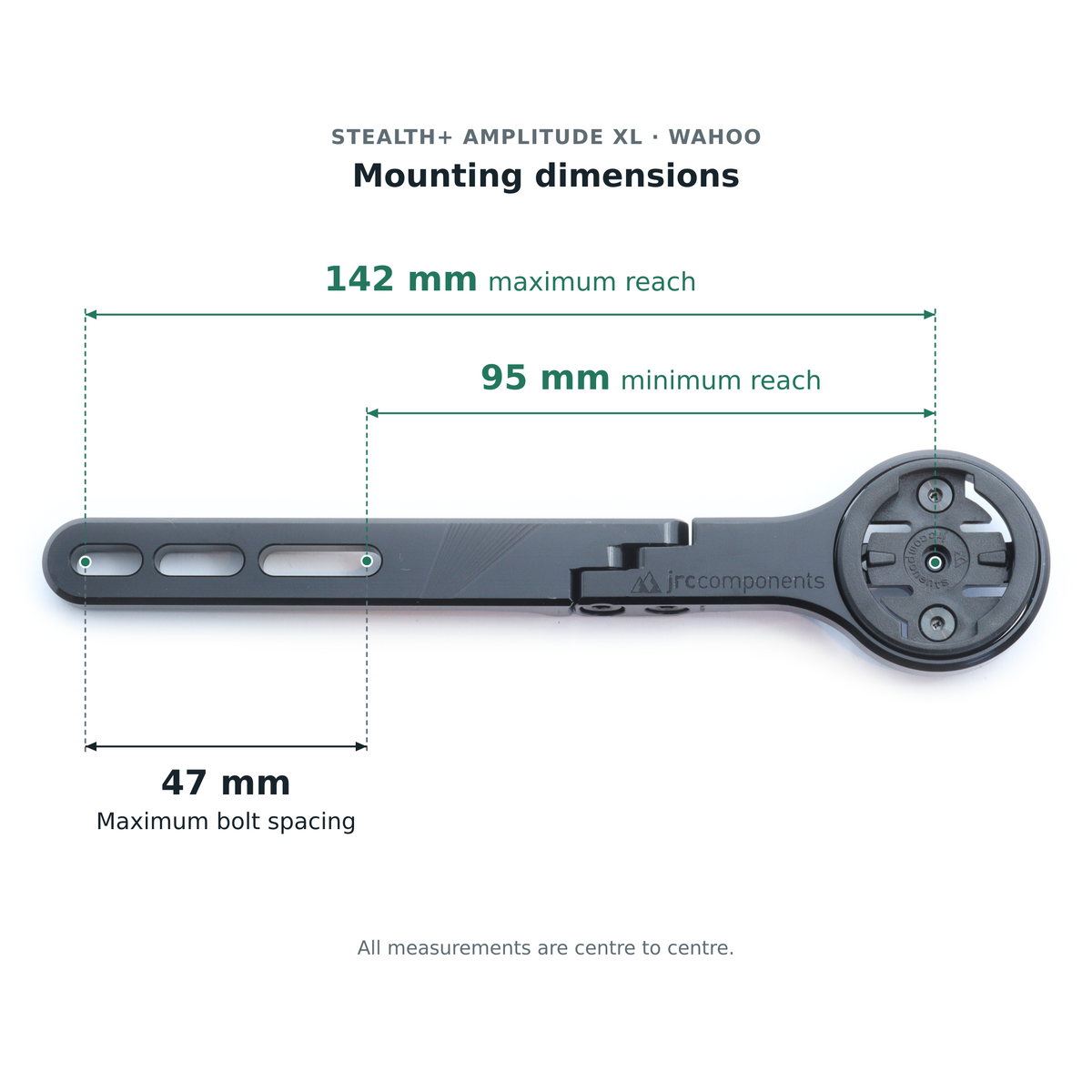

- Maximum bolt spacing
- 47 mm, centre to centre
- Maximum reach
- 142 mm, centre to centre
- Minimum reach
- 95 mm, centre to centre
- Mounting bolts
- M5 supplied
Canyon handlebars with M4 threads
Compatible Canyon H31 and CP-series handlebars require M4 bolts. Reuse the original M4 mounting bolts supplied with your handlebars, provided the length is suitable.
Need replacement bolts?
Choose our splayed-head M4 bolts for the Amplitude Mount, available separately.
View M4 boltsM5 mounting bolts are included with the mount as standard.
Fitting guides & manuals
Need help with fitting or care? Contact us about this product.
Materials
Materials
Included
Included
Stealth+ Premium Amplitude Mount | Wahoo
Stealth+ Premium Amplitude Mount | Wahoo
Looking for Garmin? View the Garmin mount
-
Extended XL Body+22mm clearance
- 48 gWeight
-
Set Your Viewing Angle9° up · 6° down
Complete your setup
Choose one optional add-on and save.
Savings are set in EUR and converted to your currency (USD) at checkout.
Materials
Materials
Included
Included

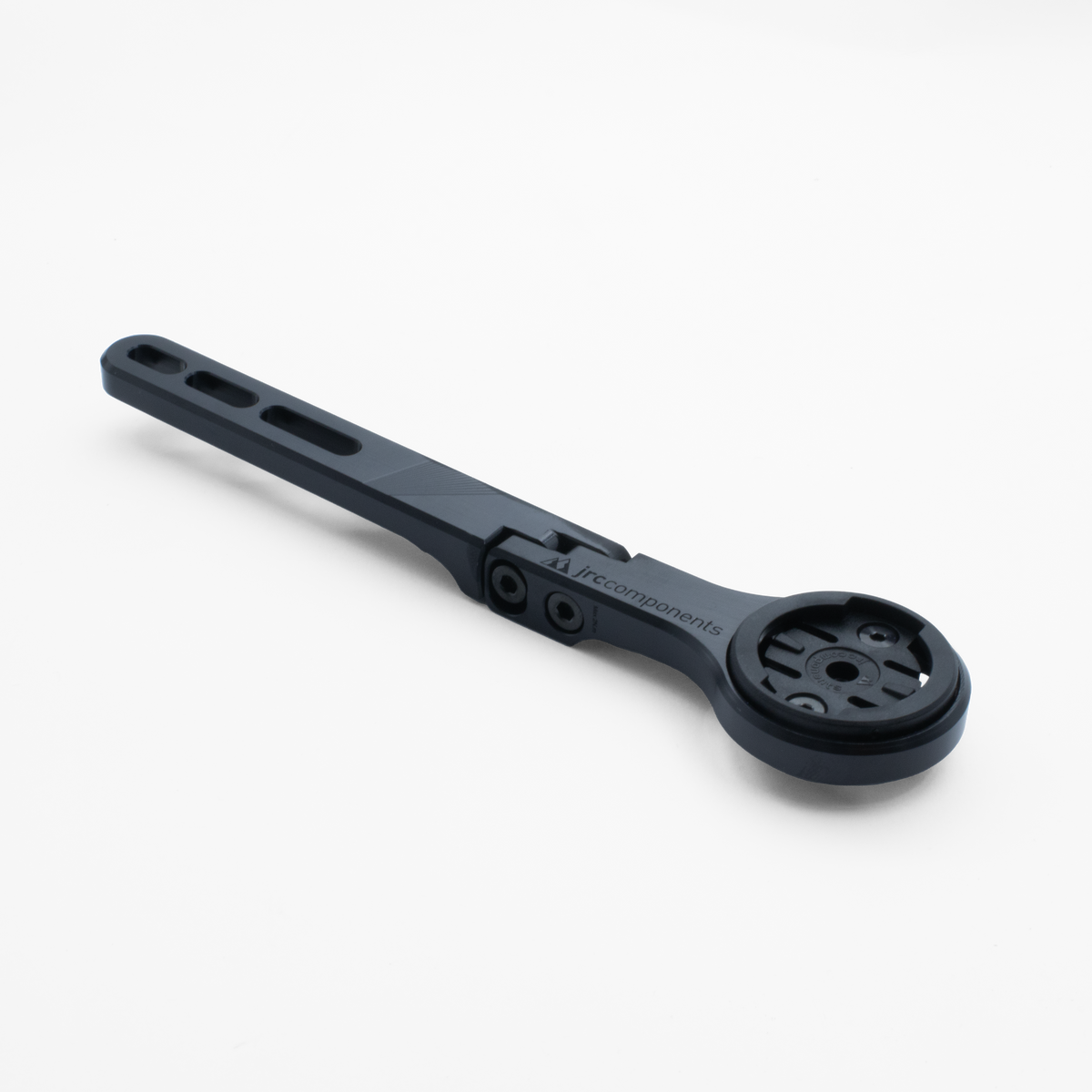

Take your cockpit to the next level. The Stealth+ Premium Amplitude Mount pairs our extended XL underbar design with the Stealth+ treatment — dark etched detailing and 6Al-4V Titanium on-mount hardware — for a clean, integrated setup engineered for larger head units and longer-reach integrated handlebars.
Fully machined from CNC 6061-T6 Aluminium with a hard-wearing POM computer insert, the extended body positions your computer further out front than the standard Amplitude Mount, while the low-profile design keeps it sitting almost flush with the bars.
Titanium is used where it shows: the exposed insert and angle-adjustment bolts are 6Al-4V titanium. The handlebar fixing bolts and washers, concealed once fitted, are corrosion-resistant SUS 304 stainless steel.
Features:
- 15° of angle adjustment (9° up / 6° down) via a stepped section locked by twin titanium bolts, holding your computer level whatever your bar angle
- Extended XL body — 22mm longer than the standard Amplitude Mount
- Fore-aft adjustment for optimal placement
Specifications:
- Weight: 48g (56g including mounting bolts & washers)
- Maximum device load: 350g
- Overall length, insert centre to rear of mount: 150mm
- Maximum mounting bolt torque: 3Nm
